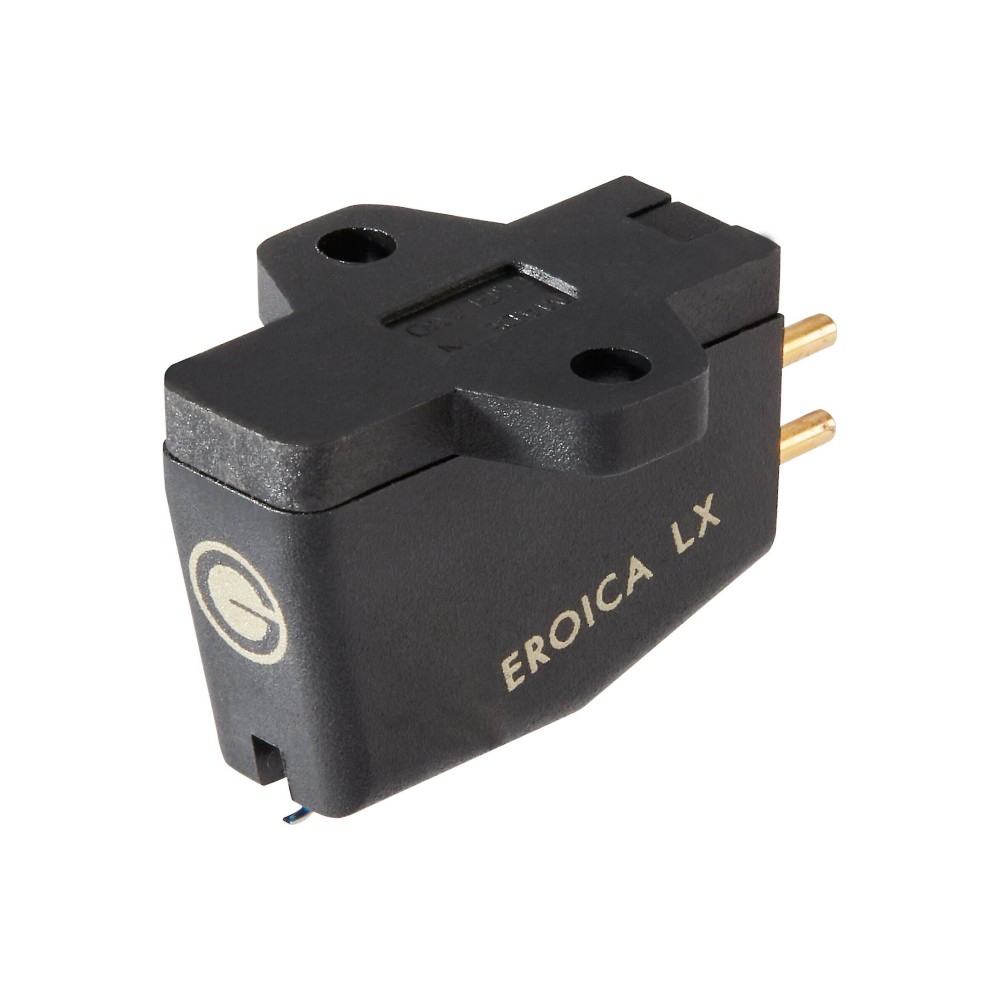

Goldring Eroica LX - MC - Pickup
Eroica LX er en sann audiofil pickup med den berømte Gyger II slipingen av diamanten på nålerøret. Denne har en meget flott og åpen klang med lav forvrengning. Lydbildet er preget av dynamikk og et stort detaljnivå. Her er det håndviklede spoler rundt selve armaturet av jern som igjen er koblet til et avansert magnetsystem med lav masse og svært kraftige magneter. Eroica LX har lavt utgangsnivå og må brukes med en dedikert MC-forforsterer. Dette er en pålitelig høyytelses-pickup.
Efficient Magnetic Circuit
The Eroica uses a neodymium (NdFeB), rare-earth, permanent magnet; the strongest type commercially available. This gives us the opportunity to shorten the magnetic circuit in the cartridge and still achieve the required field strength in the pole shoe gap. In this way the overall mass of the cartridge has been reduced to help improve trackability and make it compatible with a wider range of tonearms.
Low Mass Pocan® Body
The Eroica uses a strong one piece body which holds the fixed parts securely in place. Made from a special type of ultra-rigid, glass reinforced polyester called Pocan®, the body can be tightly bolted to the head shell for maximum efficiency and optimum sound quality. Because Pocan® has a high strength-to-mass ratio, the overall mass of the Elite is kept below 6.0 g.
Expert Adjustment
Each Eroica cartridge is hand-built and then individually adjusted for azimuth and compliance by our experts. The correct setting of stylus azimuth (or horizontal tracking angle) is essential for the maintenance of a proper stereo sound stage. Badly adjusted azimuth can cause uneven channel balance and increased crosstalk between channels which would severely degrade the stereo image. Correct compliance ensures that the cartridge has an even frequency response within the specified limits and will be compatible with all low to medium-mass tonearms.
Spesifikasjoner:
- Frequency Response 20 Hz - 22 kHz ± 2 dB
- Channel Balance within 1 dB @ 1 kHz
- Channel Separation better than 25 dB @ 1 kHz
- Sensitivity 0.5 mV ± 1dB, 1kHz @ 5 m/s
- Static Compliance 30 mm/N
- Dynamic Compliance @ 10 Hz 18 mm/N
- Equivalent tip mass 0.35 mg
- Vertical Tracking Angle 24 °
- Stylus Radius Gyger II
- Stylus Type Non-Replaceable
- Load Resistance 100 Ω
- Load Capacitance 100 - 1000 pF
- Internal Inductance 12 µH
- Internal Resistance 8 Ω
- Cartridge Mass 5.5 g
- Cartridge Mass (inc fixings) 6.6 g
- Fixing Centre 0.5 " (12.7 mm)
- Playing Weight 1.5 - 2.0 g (1.7 g nom.)
